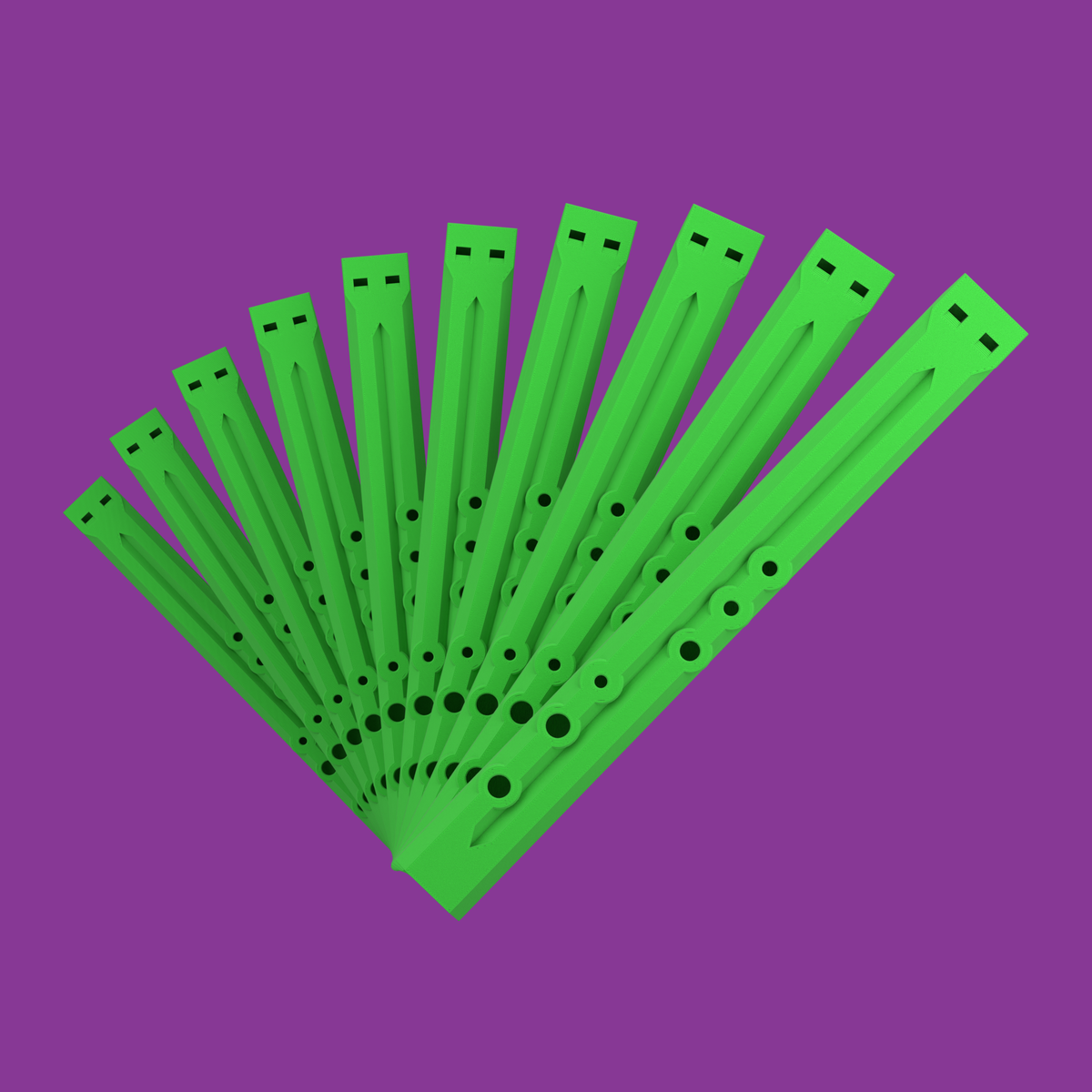

• Major Harmonizer collection, ten sizes

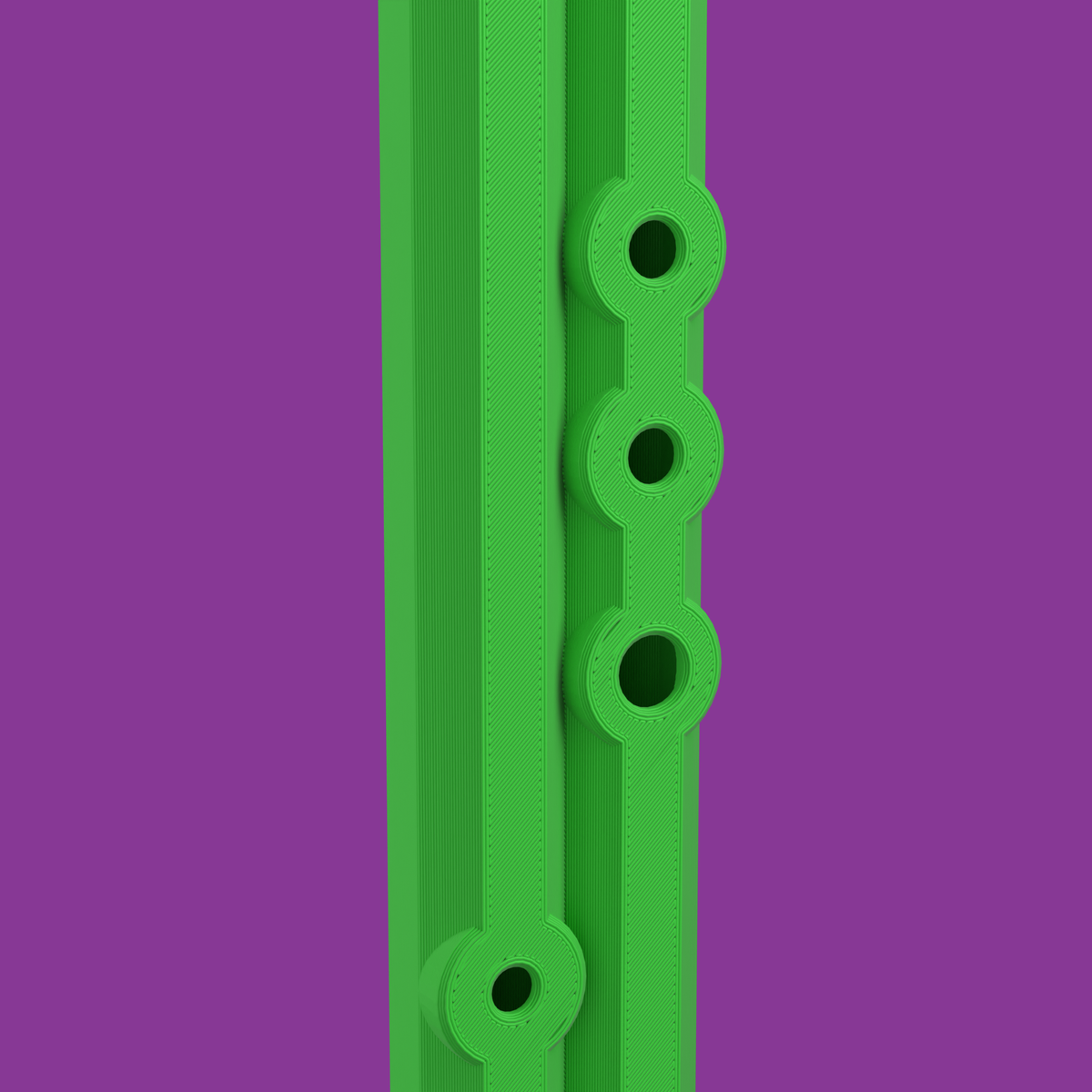

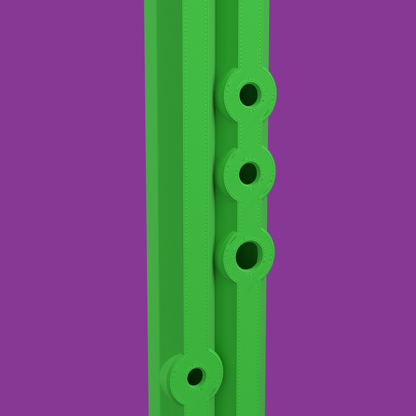

  • Major Harmonizer printed surface and finger holes

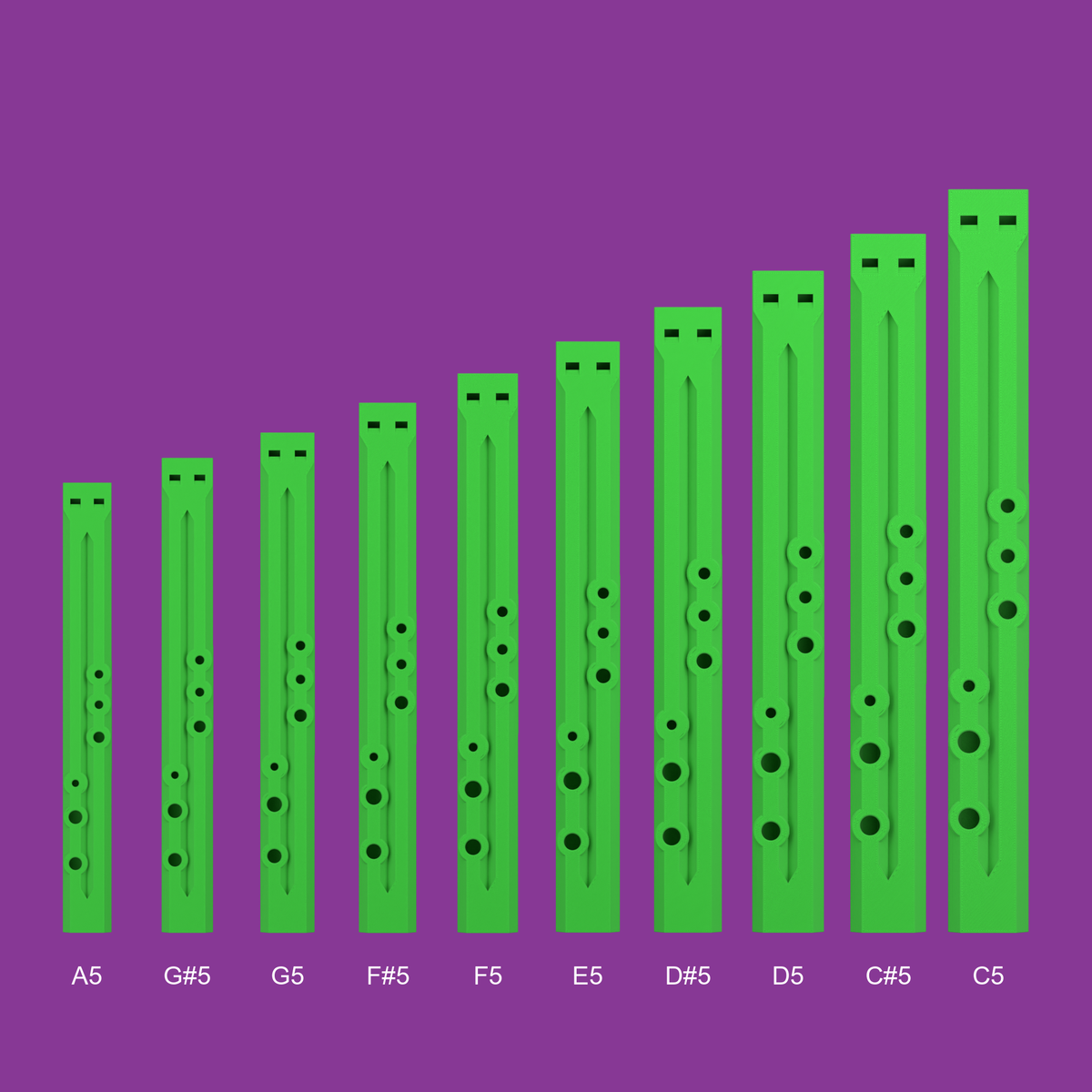

  • Major Harmonizer sizes from A5 to C5

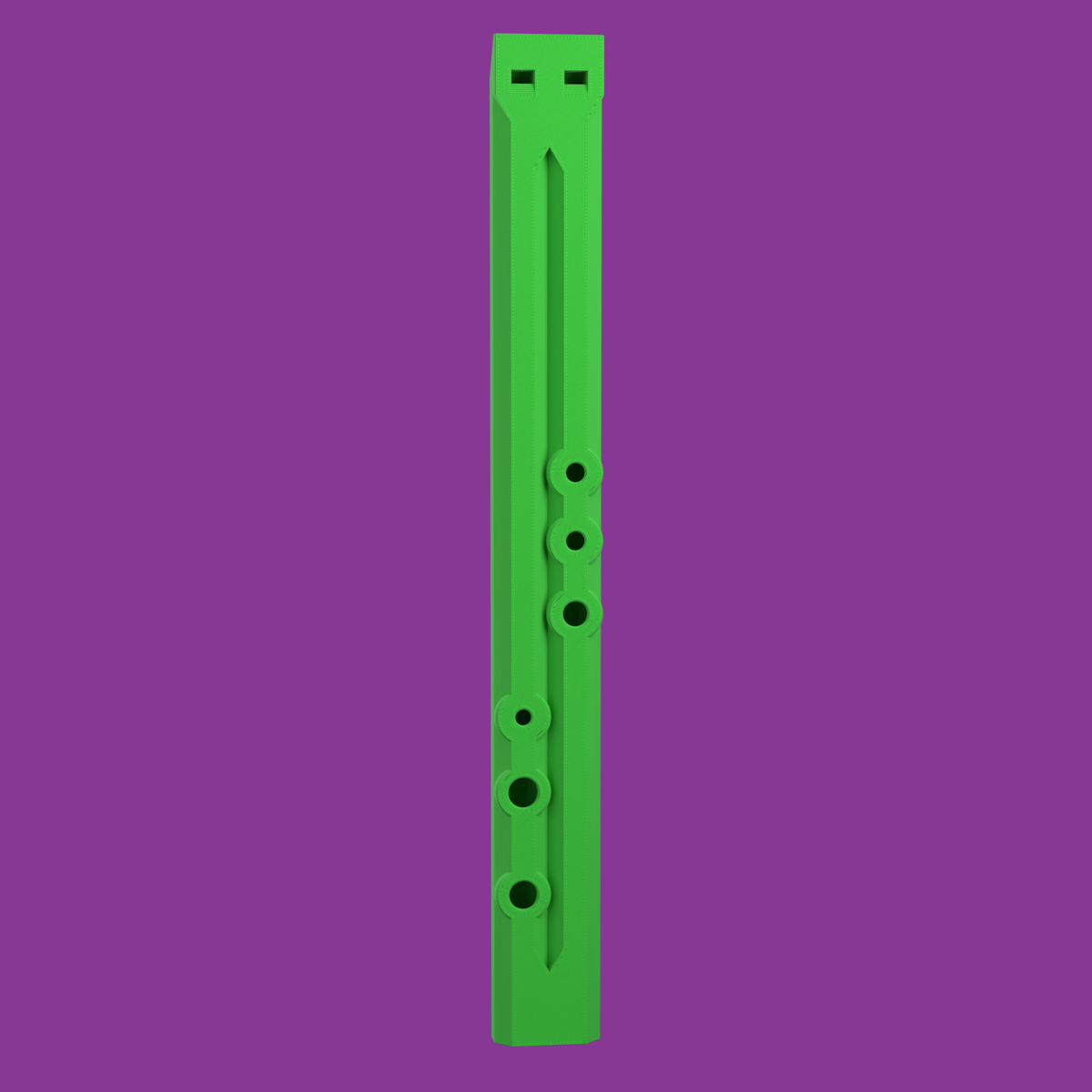

  • Major Harmonizer full instrument

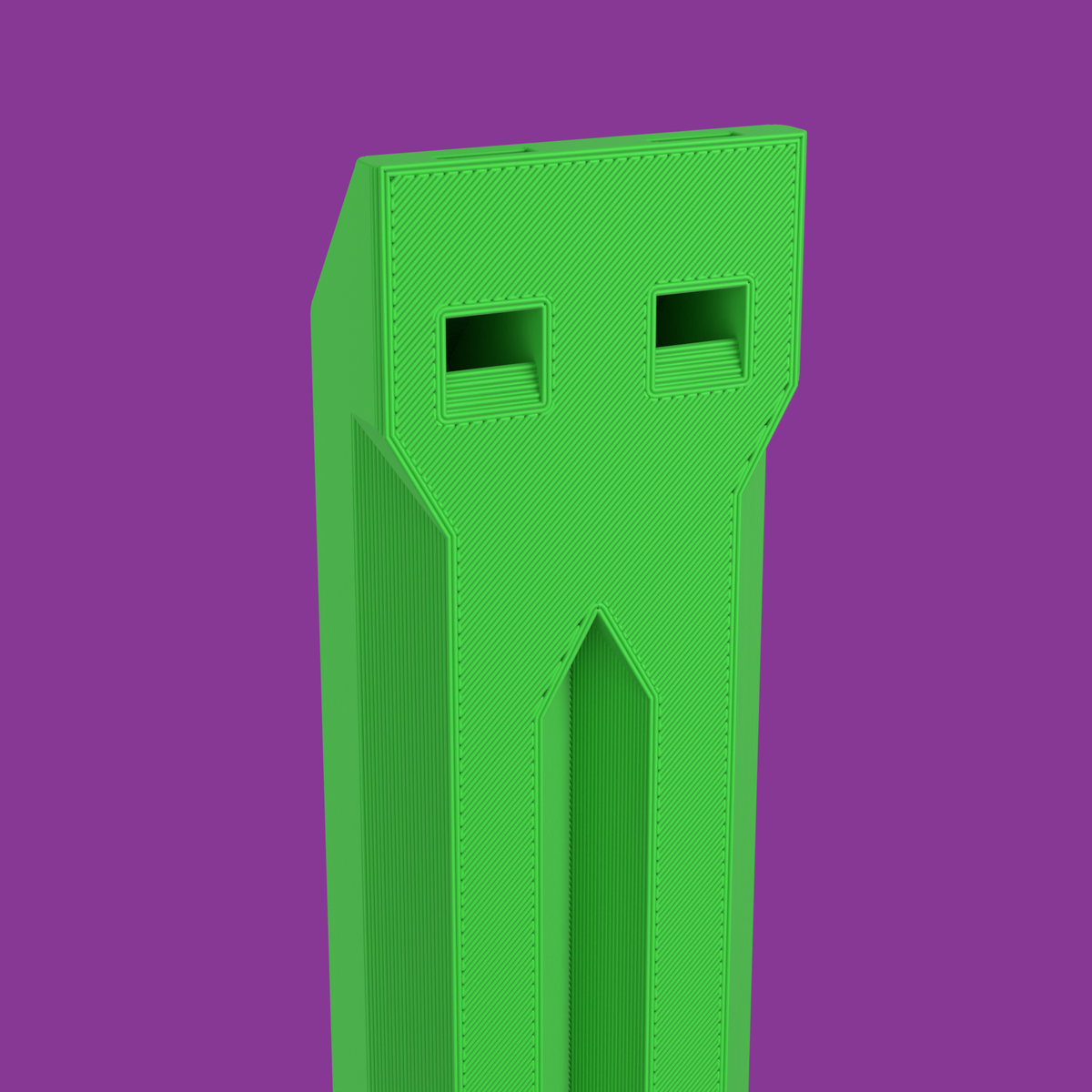

  • Major Harmonizer mouthpiece detail
  • Major Harmonizer keys and lengths

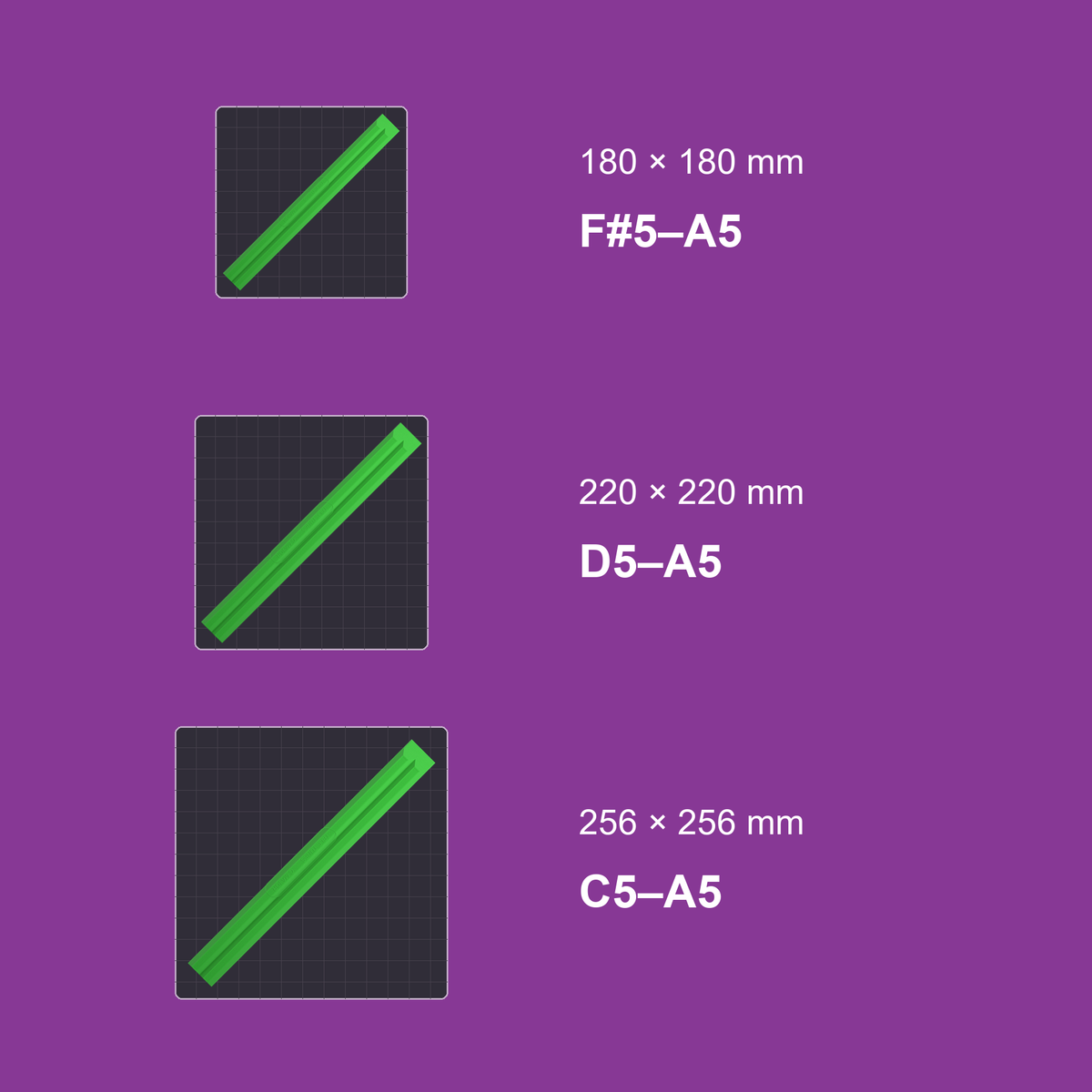

  • Major Harmonizer build plate size comparison, holes facing the plate
  • Correct and incorrect bridging direction across the windway
1 8

Major Harmonizer Tune

Major Harmonizer Tune

Digital Download
$6.00 USD
$6.00 USD
Sale
Taxes included.
Key

The major scale is divided between two pipes, allowing different harmonies as well as regular drone playing.

Digital 3D-printing files. No physical instrument.

Scale Major

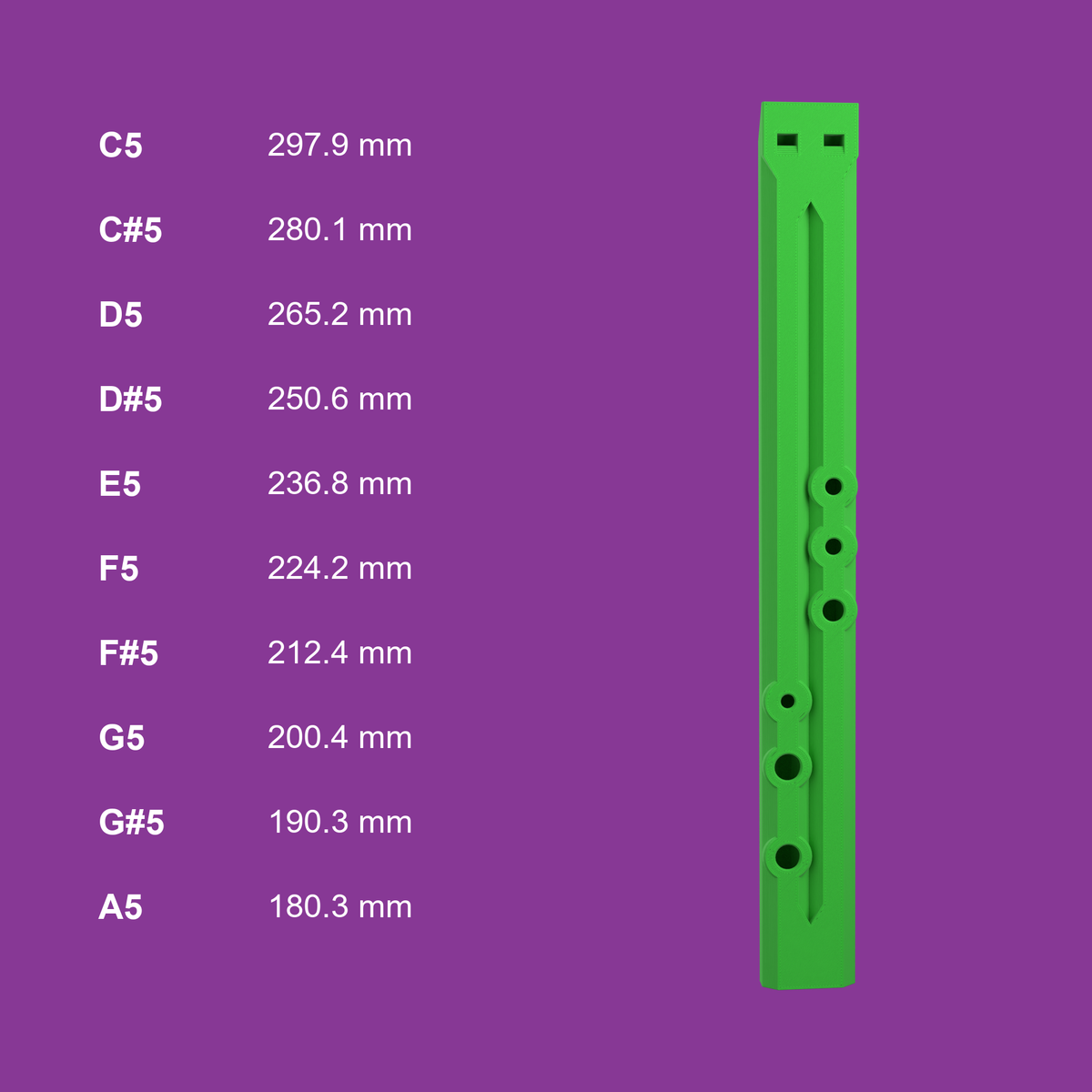

Length 180.3–297.9 mm, depending on key

Included files

For your selected key: STL, Bambu Studio 3MF project, Printing Instructions.pdf, text instructions, fingering chart and license.

Printing

Required: 0.4 mm nozzle, 0.2 mm layer height, supports off. Print with the holes facing the build plate.

Recommended: Arachne wall generator and dry, standard PLA, not silk or matte PLA. Try to keep the seam off the windway surfaces and away from the splitting edge.

Printing Settings
Bambu Studio Project Included i Yes
Nozzle Size0.4mm
Layer Height0.2mm
SupportsNONE
Print OrientationHoles facing the buildplate
Seam PlacementSeam should not be located on windway or splitting edge if possible

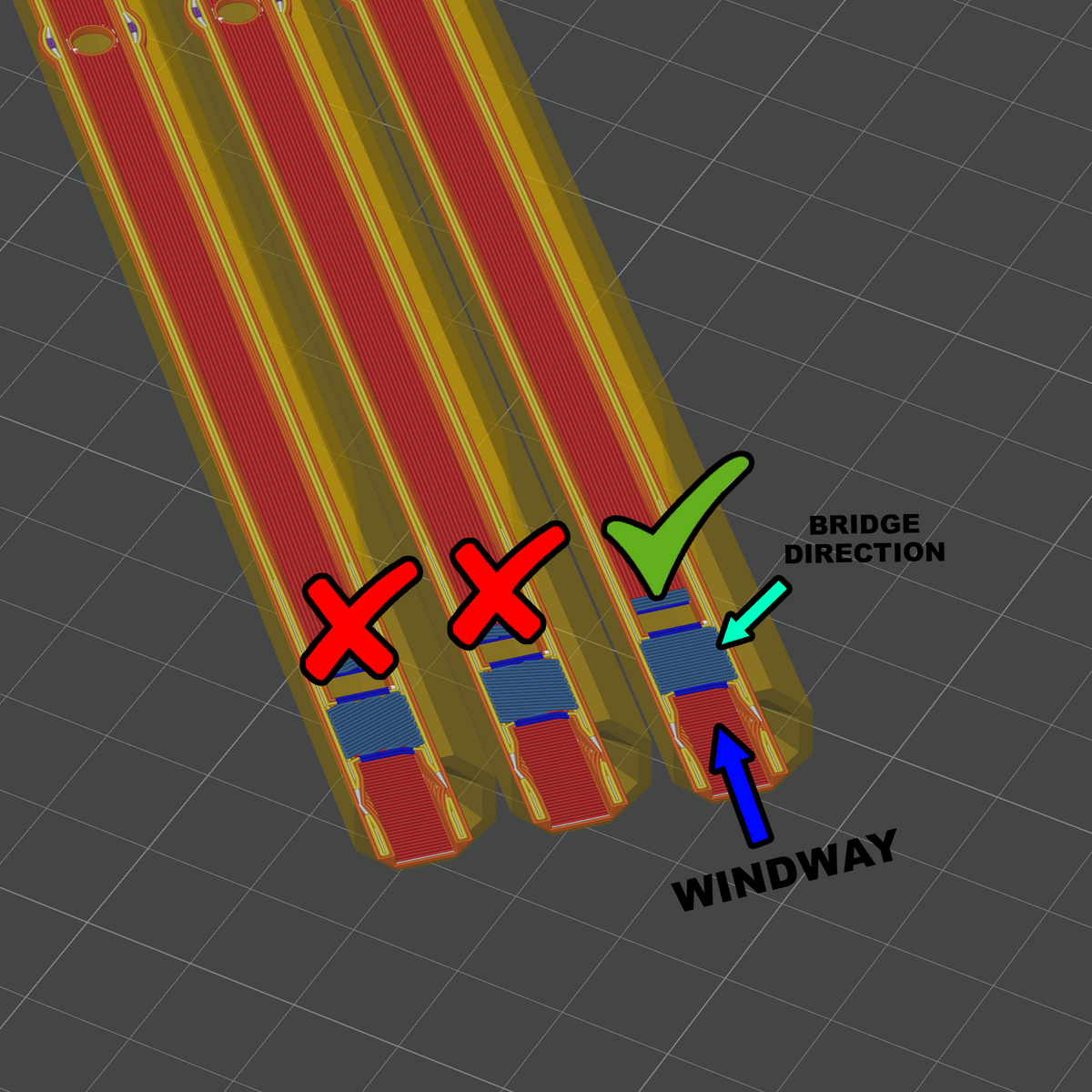

Bridging DirectionBridging and surfaces should be perpendicular (90 °) to both the windway and the flute.
Other NotesWall generator: Arachne

Most print failures are caused by windway bridging. If a print fails, put a light at one end of the windway and look inside the windway; clear any debris blocking the airstream.
